eTS8 Total Station
eTS8 ANDROID SMART TOTAL STATION The eSurvey eTS8 is a high precision manual total station,…
Written quote within one business hour. No obligation, no spam.
Prefer to try it first? Ask about short-term hire.
About the eTS8 Total Station.

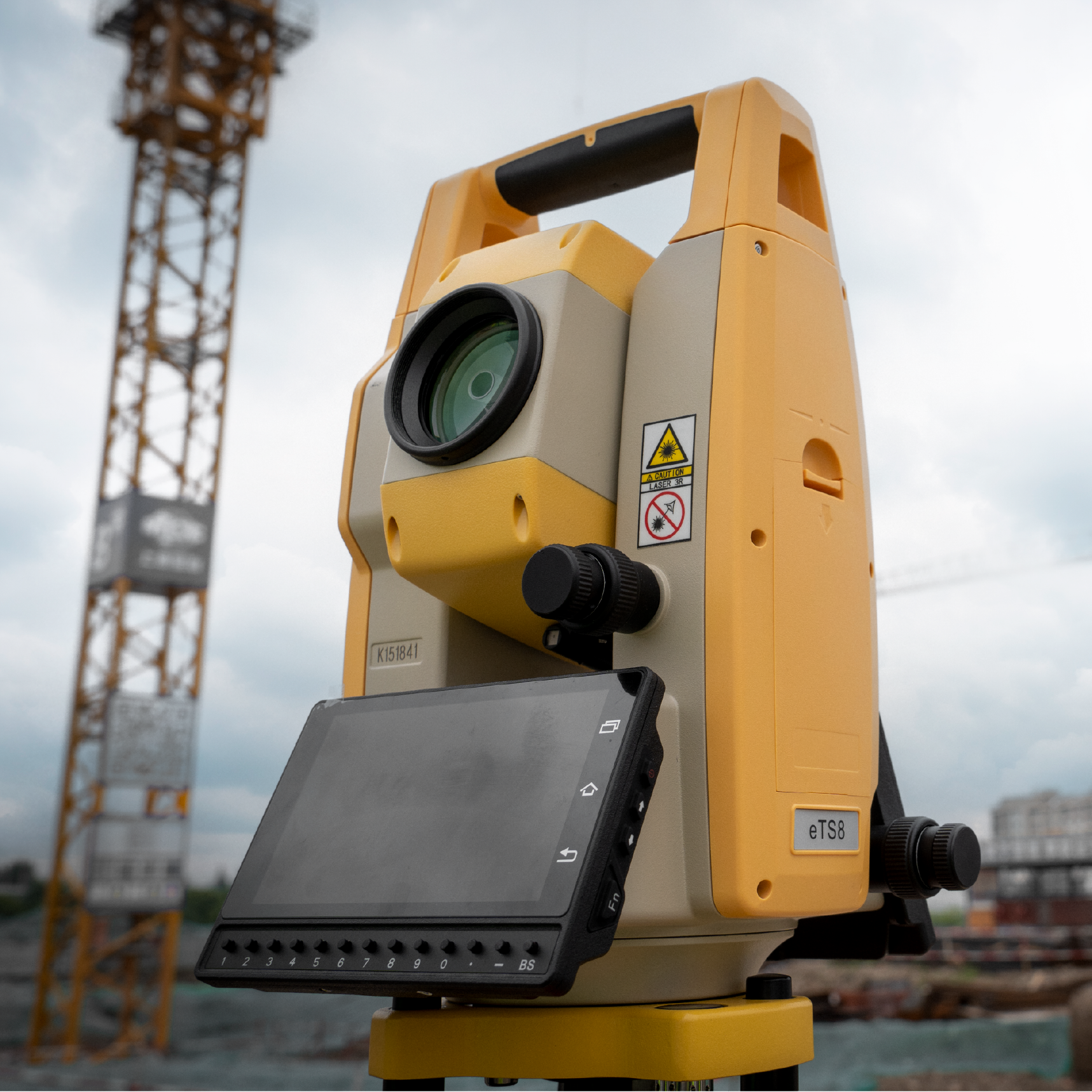

The eSurvey eTS8 is a high-precision manual total station built on a full Android smart platform, marketed by eSurvey as an Android smart total station. It combines the eTS line's 2-arc-second angular accuracy and reliable EDM core with a large HD touchscreen, the Android operating system, Bluetooth, Wi-Fi and 4G connectivity, and onboard map and DWG visualisation.
It is the most software-capable instrument in the series. Crews can run complex computing programs, load 2D maps and DWG drawings on site, and move data over the internet or cloud. Built for teams that want a modern, app-driven field experience on a conventional manual total station.
Built to make the job faster.
Android smart platform
Runs Android on a quad-core processor with 4 GB RAM and 64 GB storage, so it handles complex computing programs and custom survey apps.
HD touchscreen
A large 5.5 inch HD touchscreen with an interactive interface and dual screens gives fast, intuitive data entry.
2-arc-second accuracy
An absolute-encoder reading system delivers 2-arc-second angular accuracy with display resolution down to 0.1 arc-seconds.
Comprehensive connectivity
Built-in Bluetooth, Wi-Fi, Wi-Fi hotspot, a 4G module and USB Type-C cover cloud data transfer and instrument interconnection.
Map and DWG visualisation
Loads 2D maps and imports DWG drawings on site, so measured points can be checked against the design in real time.
Long EDM range
Reaches 5,000 m to a prism and 1,000 m reflectorless, with fine measurement in 0.3 seconds.
Watch it work.
The full detail.
Angle Measurement
- Reading system
- Absolute encoder
- Accuracy
- 2 arc-seconds
- Display resolution
- 0.1 / 1 / 5 arc-seconds
Distance Measurement
- Range, prism
- 5,000 m
- Range, reflectorless
- 1,000 m
- Accuracy, prism
- 2 mm + 2 ppm
- Accuracy, reflectorless
- 3 mm + 2 ppm
- Measuring time
- Fine 0.3 s, tracking 0.1 s
Telescope & Optics
- Magnification
- 30x
- Minimum focus
- 1.4 m
- Resolution
- 3 arc-seconds
- Laser pointer
- Supported
Display & Software
- Operating system
- Android
- Processor
- Quad-core MediaTek
- Memory
- 4 GB RAM, 64 GB storage
- Screen
- 5.5 inch dual HD touchscreen, 720 x 1280
- Connectivity
- Bluetooth, Wi-Fi, Wi-Fi hotspot, 4G
Physical & Electrical
- Dimensions
- 200 x 170 x 350 mm
- Battery
- 7.4 V, 3,100 mAh
- Working time
- About 8 hours
- Protection
- IP55
- Operating temperature
- -20 to +60 degC
Other
- Compensator
- Dual-axis, 4 arc-minute range
- Laser plummet
- 1.5 mm at 1.5 m, Class 2
- Storage expansion
- TF card up to 128 GB
Specifications are sourced from the manufacturer and may vary by configuration or firmware. Full datasheets available on request.
Where it earns its keep.
- 01 Engineering and infrastructure surveys
- 02 Construction setting out with on-site design comparison
- 03 Topographic and detail surveys
- 04 Cadastral and boundary surveys
- 05 Control surveys and traversing
- 06 As-built verification
Backed by GeoSurv Africa.
The kit is only half of it. Every instrument we supply is backed by our own service centre and a team that knows the gear.
In-house service centre
Calibration, repair and accuracy testing for most professional brands.
Honest, project-led advice
We match the kit to your accuracy needs and budget, no upselling.
Real local support
Phone, email or WhatsApp a person who actually knows the gear.
Equipment hire available
Cover project peaks or service downtime with short-term hire.
